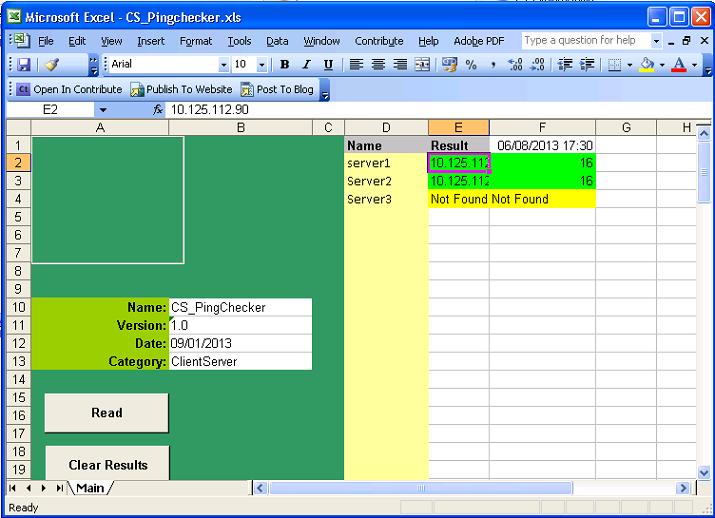

The CS_PingChecker spreadsheet allows a list of hosts to be pinged sequentially and the results compared from host to host.
The control buttons on the left hand side perform the following function:
Button |
Functionality |
Read |
Pings the Hosts in Column D and outputs the results to column E. Each new time read is selected then the next available column to the right will be timestamped and the millisecond response time will be populated in that column. |
Clear Results |
Deletes the results from column E and higher |
Populate a list of hosts in column D, the hosts can be listed by either FQDN, hostname or IP Address. (e.g. server1.sourcedom.com or server1 or 10.1.2.3).
Select the read button to start pinging and the current results will be populated in column E.
Result |
|
IP Address |
The object has been pinged successfully (IP Address recorded) |
Not found |
The hosts name to IP address cannot be resolved |
Error |
There is an error pinging the host |
A second set of results will be populated in a timestamped column in the first available column to the right.
TimeStamp |
|
Millisecond Response |
The object has been pinged successfully (Milliseconds recorded) |
Not found |
The hosts name to IP address cannot be resolved |
Error |
There is an error pinging the host |
This spreadsheet will allow the ping results of many hosts to be recorded and compared and the result of those pings to be compared at different times.
